Shiny - UI
and Server

Day 23

Prof Emily Kurtz

Carleton College
Stat 220 - Spring 2026

Demo

Source: Shiny for R Gallery

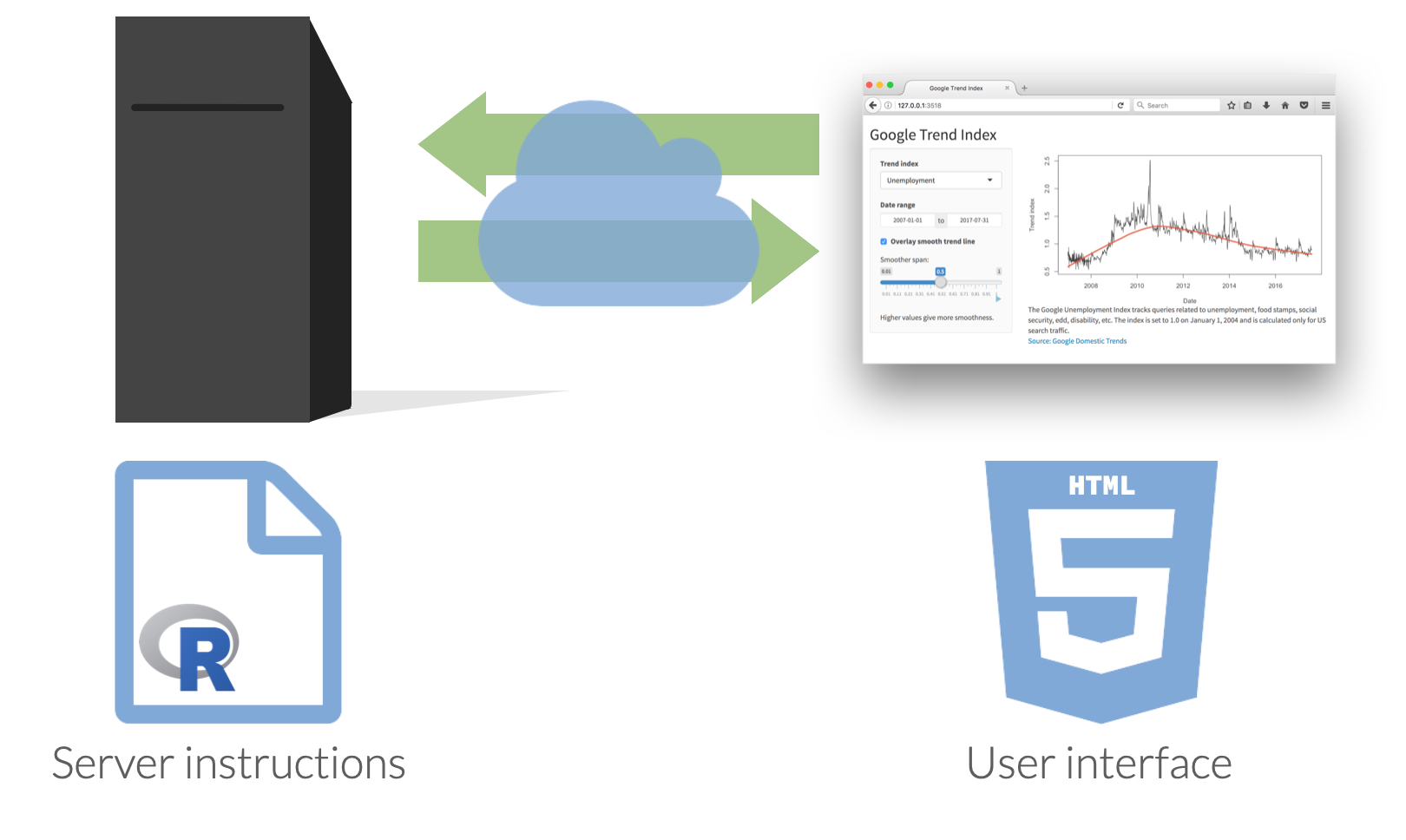

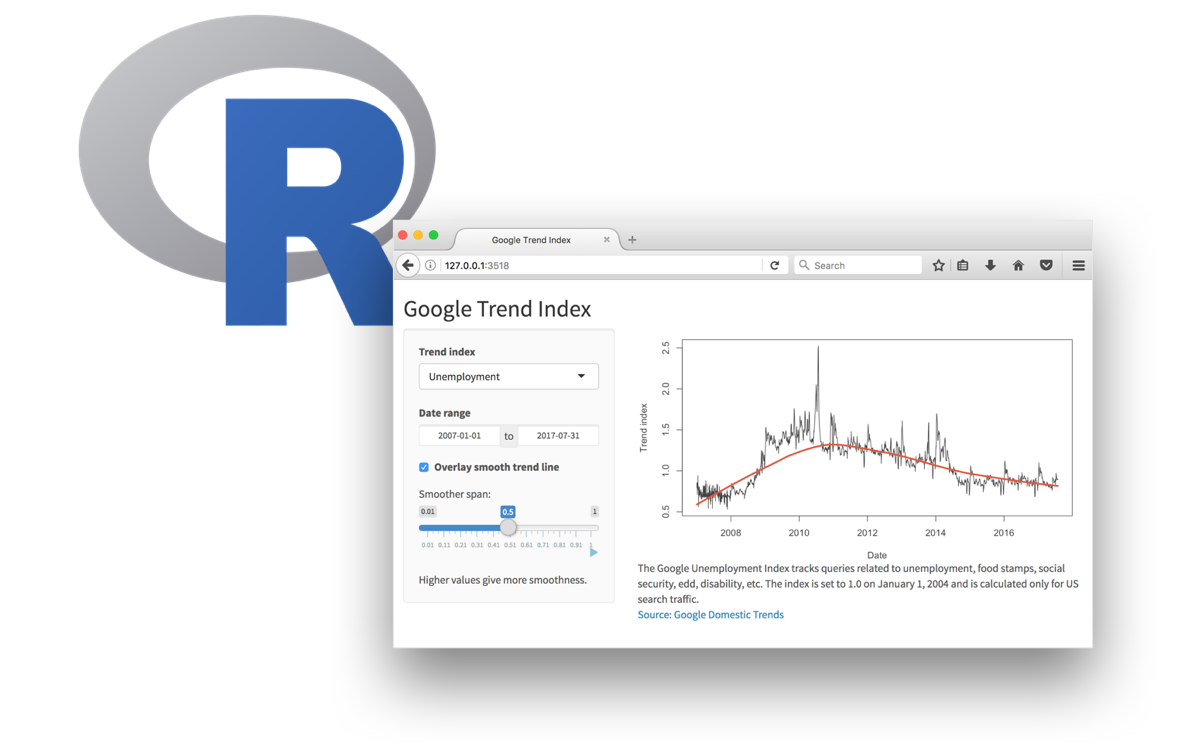

Shiny: High level view

Every Shiny app has a webpage that the user visits,
and behind this webpage there is a computer that serves this webpage by running R.

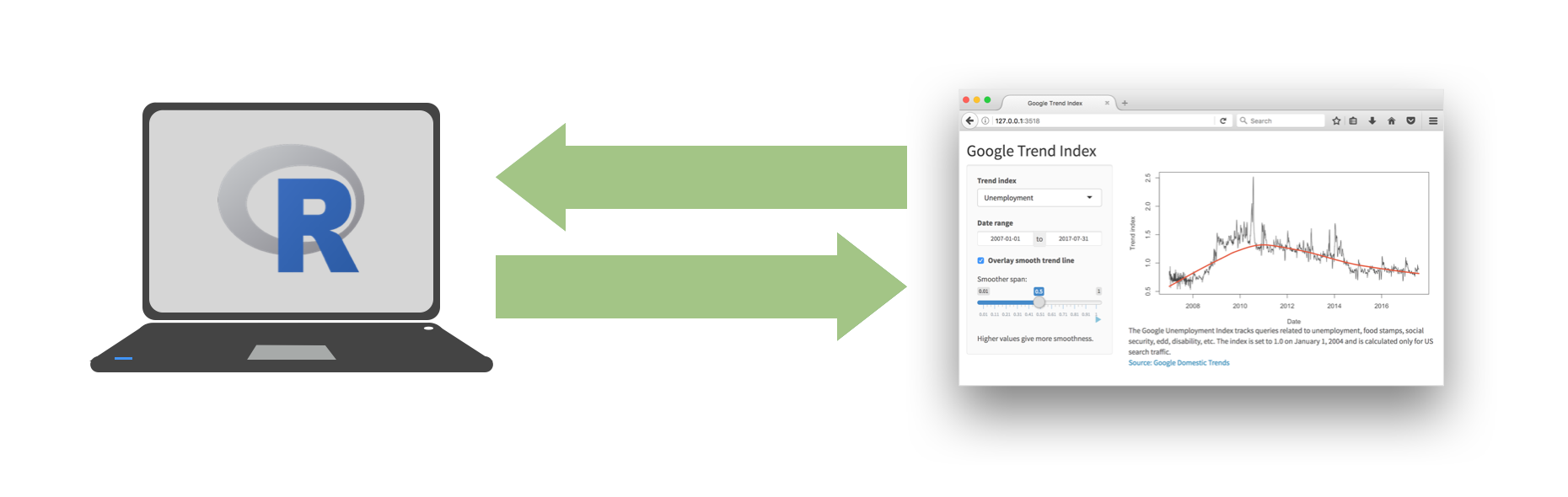

When running your app locally, the computer serving your app is your computer.

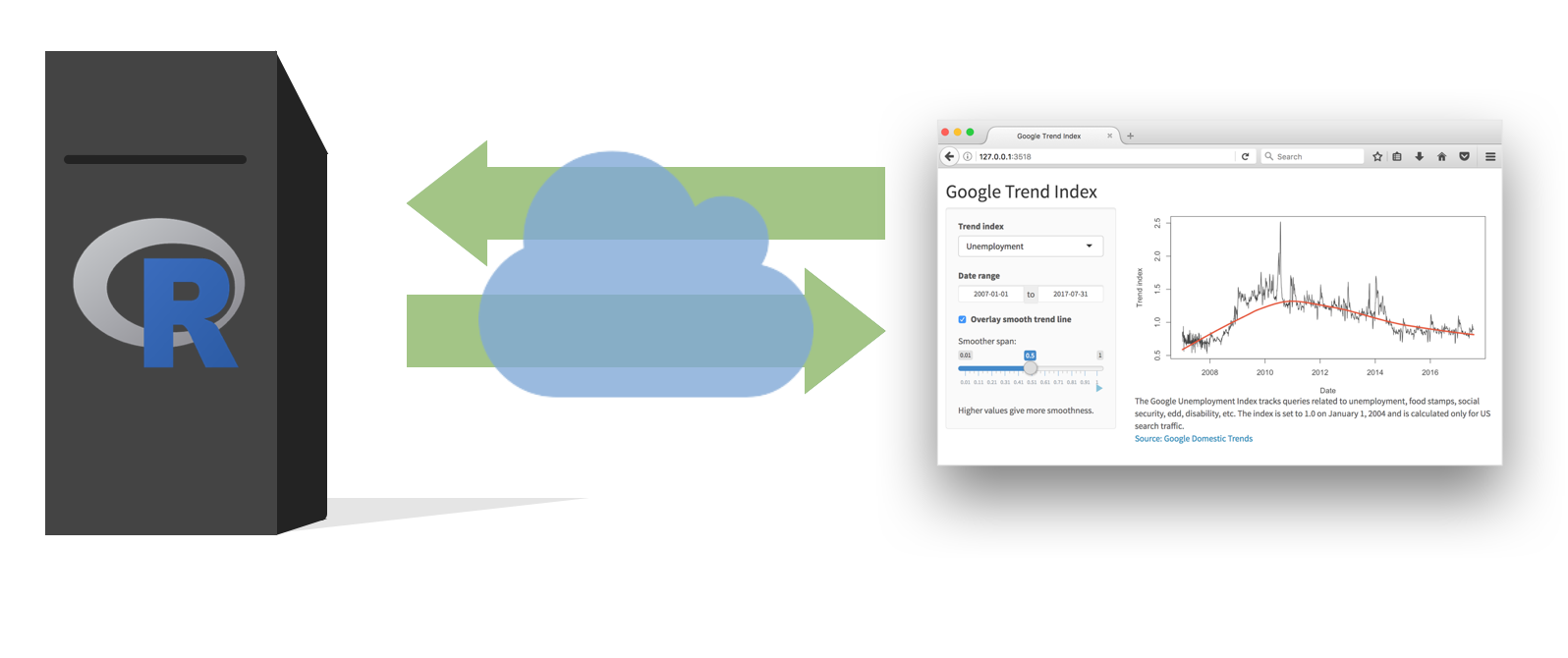

When your app is deployed, the computer serving your app is a web server.

Shiny vs. plotly

  • Shiny graphs need to be “connected” to RStudio or an Rstudio server

    • Why? Data sets are rewrangled and a new graphic is drawn

  • plotly isn’t changing the underlying data set/stats being displayed, can be displayed on webpage without an RStudio session

Getting started

Option 1: Embed a shiny plot/table in HTML docs

  • Need add runtime: shiny to your YAML header

Option 2: Can create an app.R file with a ui() and server() function

  • For template
    File > New File > Shiny Web App...

What’s in an app?

library(shiny)
# other relevant libraries, read in data, data cleaning, etc if needed
ui <- fluidPage(
  # define inputs
  # define outputs
)


server <- function(input, output) {
  ...
}
`

shinyApp(
  ui = ui,
  server = server
)

  • User interface (ui) controls the layout and appearance of app (generates what the human sees and interacts with)

  • Server function (server) contains instructions needed to build app (tells the computer/server what to do with the “instructions” the human inputs into the UI)

  • shinyApp assembles the app and is what tells R that the code we wrote is intended to be a shiny app - make sure this line of code is at the end of your document

UI

Contains everything you see in the app

  • Inputs that allow the user to interact with the app

  • outputs generated by the app in different formats (text, tables, charts, images, etc.)

  • Also controls where inputs and outputs appear on the page

Server

Creates the outputs that appear on the page

  • Uses a set of instructions written via R functions and commands

  • Recall that outputs update automatically when we change input values in the UI

  • This is due to a concept known as reactivity (more later)

Your turn

  • In RStudio, follow the path File > New File > Shiny Web App... to open the shiny app template
  • Run the app by clicking “Run App” on the navigator bar above the R script
  • Identify the input(s) and output(s) that appear in the app
  • Return to the code. Which part of the shiny app (ui or server) creates the inputs and outputs? What functions are used to create them?

Defining Inputs

Done in ui

  • sliderInput() - slider input widget

  • selectInput() - list of options to select from

  • textInput() - box to input text

  • Many more options here

Building Inputs

As seen, many types of inputs can be made using particular input functions

  • All input controls in shiny have two main parameters

    • inputId - must be unique

    • label - technically optional, but is what the user sees when interacting with that input in your app

  • Other parameters depending on exact input function

Creating Output Placeholders

Done in ui - these functions do not build outputs, they only create placeholders and indicate what type of output they will be (e.g. plot, table, text)

  • UI output functions

    • textOutput()

    • plotOutput()

    • tableOutput()

    • and more

  • The outputId of these functions will be a character string that you specify (and that the server will call)

Server - Creating Output Objects

Server builds output objects via three steps:

  • Takes in input values defined by ui (ui inputs all appear in input list - access via input$inputId)

  • Generates output using rendering function (e.g. renderPlot(), renderText(), etc.)

  • Saves outputs in the outputs list - output$object_name - object_name should match the outputId written in the ui code that creates output placeholders

Your turn

  • In the geyser app, what is the inputId of the one input defined by the ui? What is the outputId of the output defined by the ui?
  • What ___Input() and ___Output() functions are used in the ui?
  • Where are how are these inputs and outputs used in the server? What render___() function is used to generate the output?

Reactivity

Reactive Functions

When you change input in the UI (e.g. changing the number of bins for the geyser histogram), the output changes automatically

  • This is thanks to the render___() functions - called reactive functions

  • Other reactive functions

  • Reactive functions are followed by ({})

Reactive Objects

All objects created inside reactive functions are reactive objects

  • When we call a reactive object later, we must put a pair of parentheses () after it

  • Not always relevant, but appears frequently when subsetting data based on user input, or whenever code is duplicated for multiple outputs

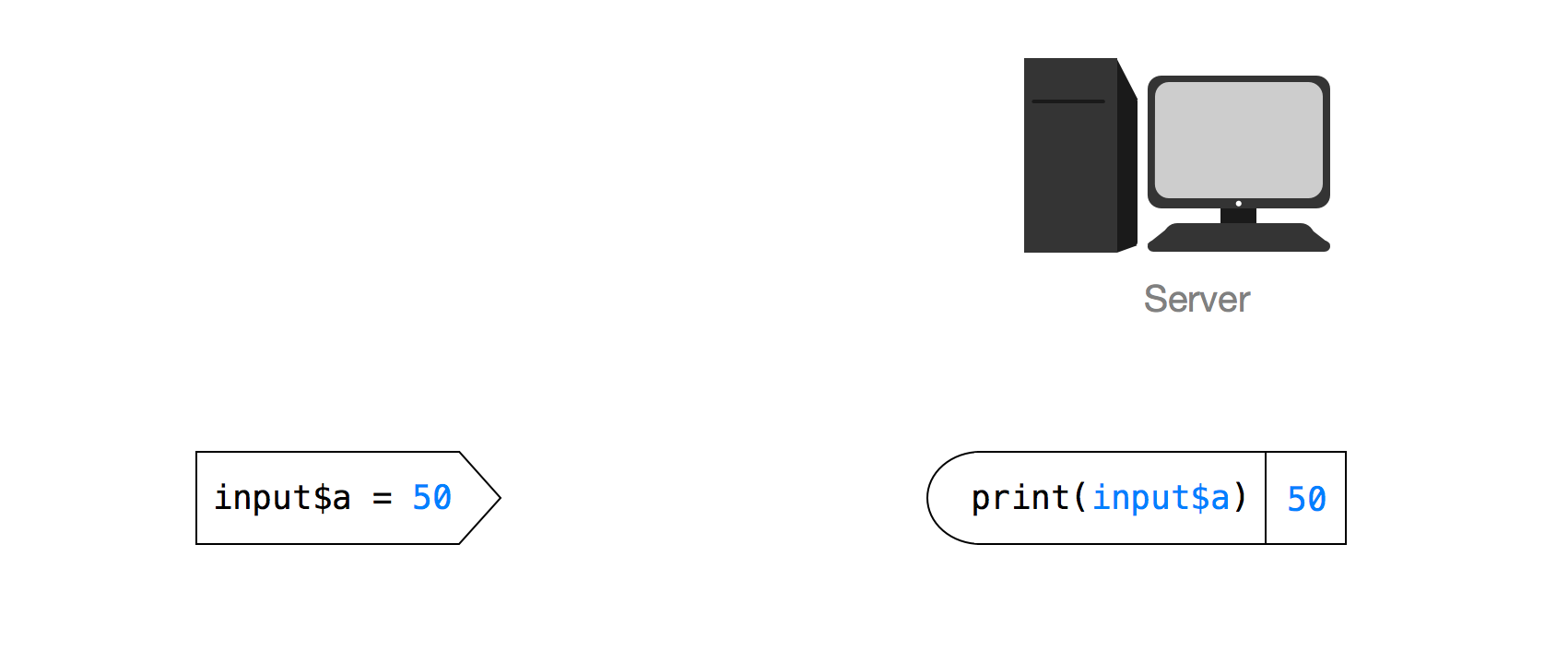

Example: A very basic app

How does print(input$a) know when to change?

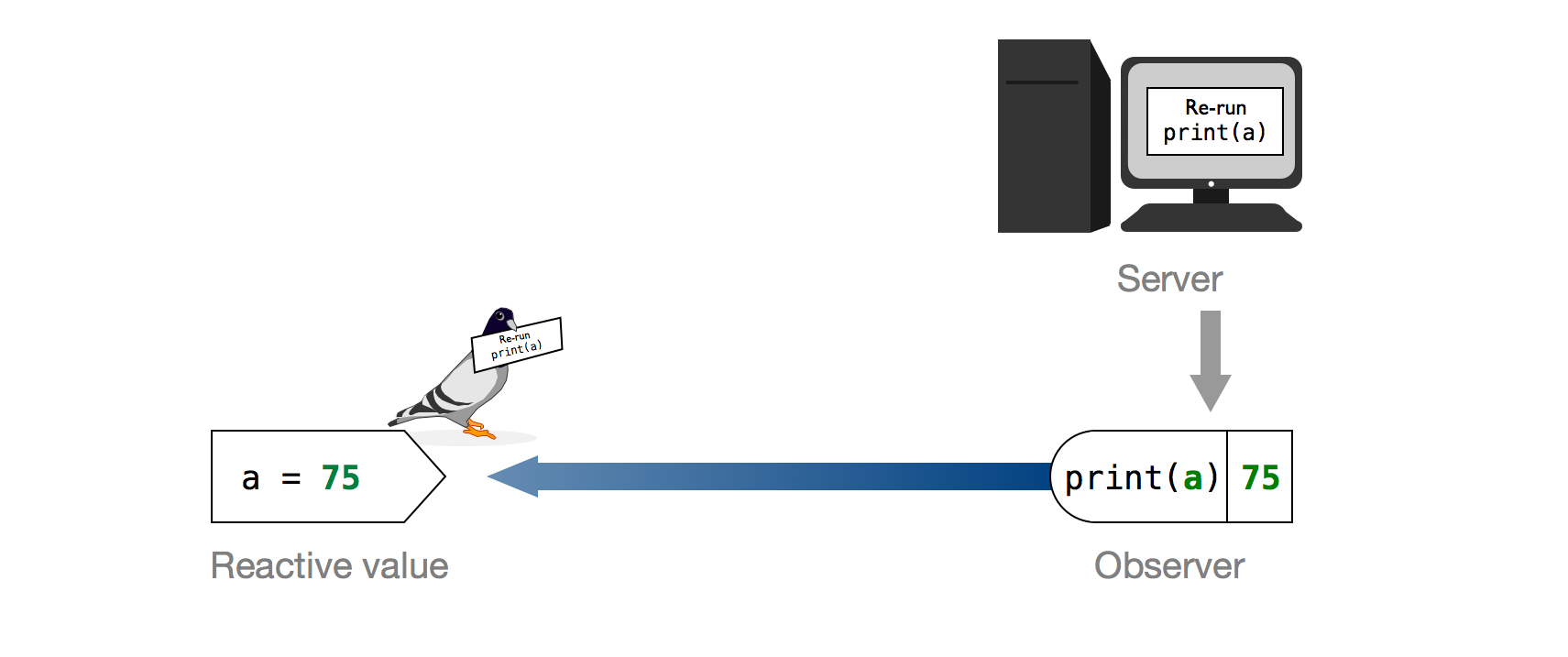

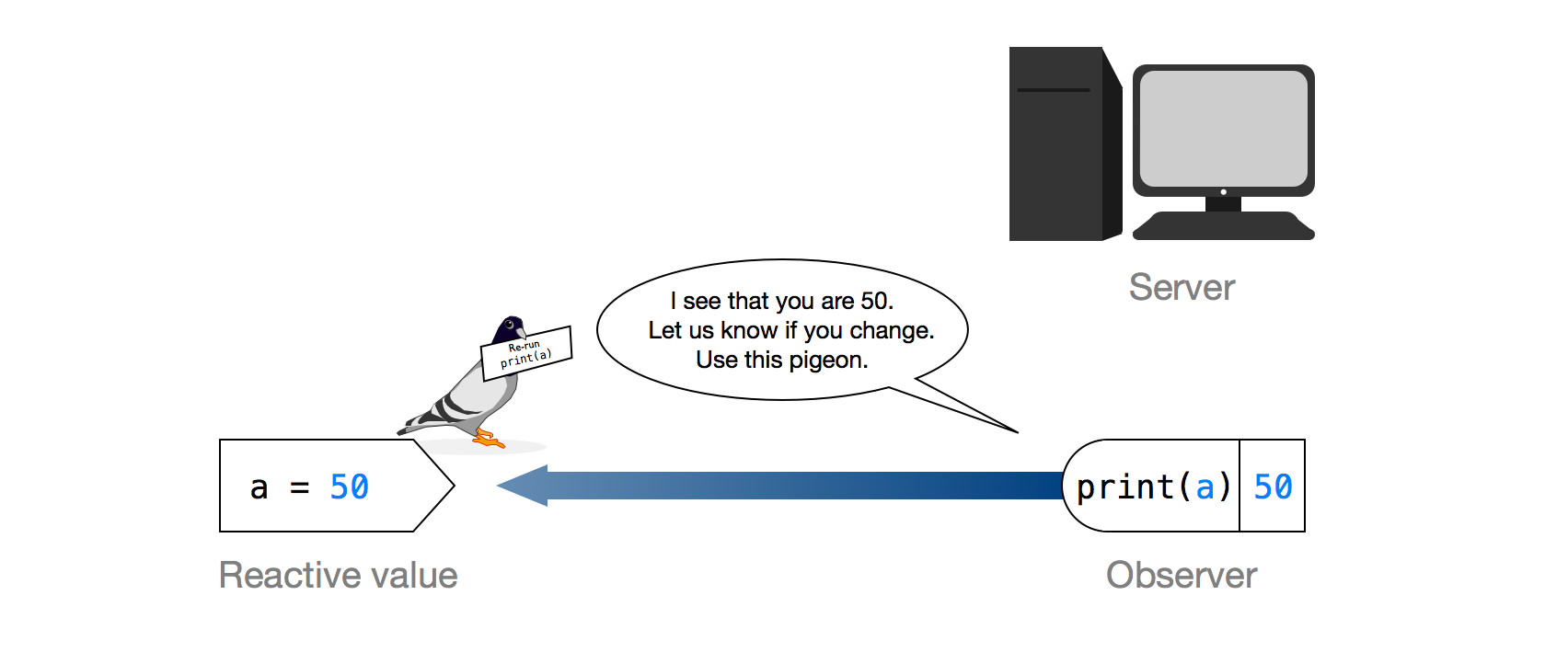

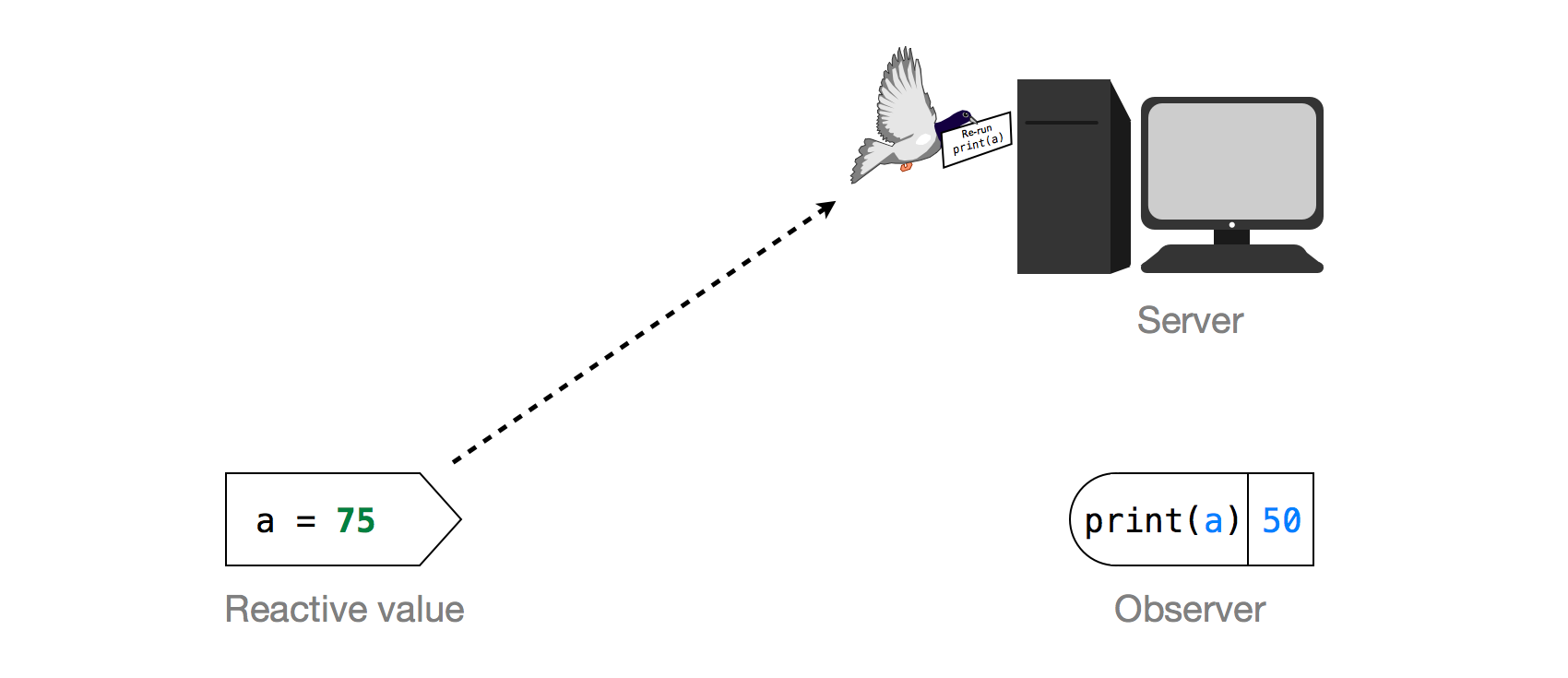

Reactivity via carrier pigeon

Reactivity via carrier pigeon

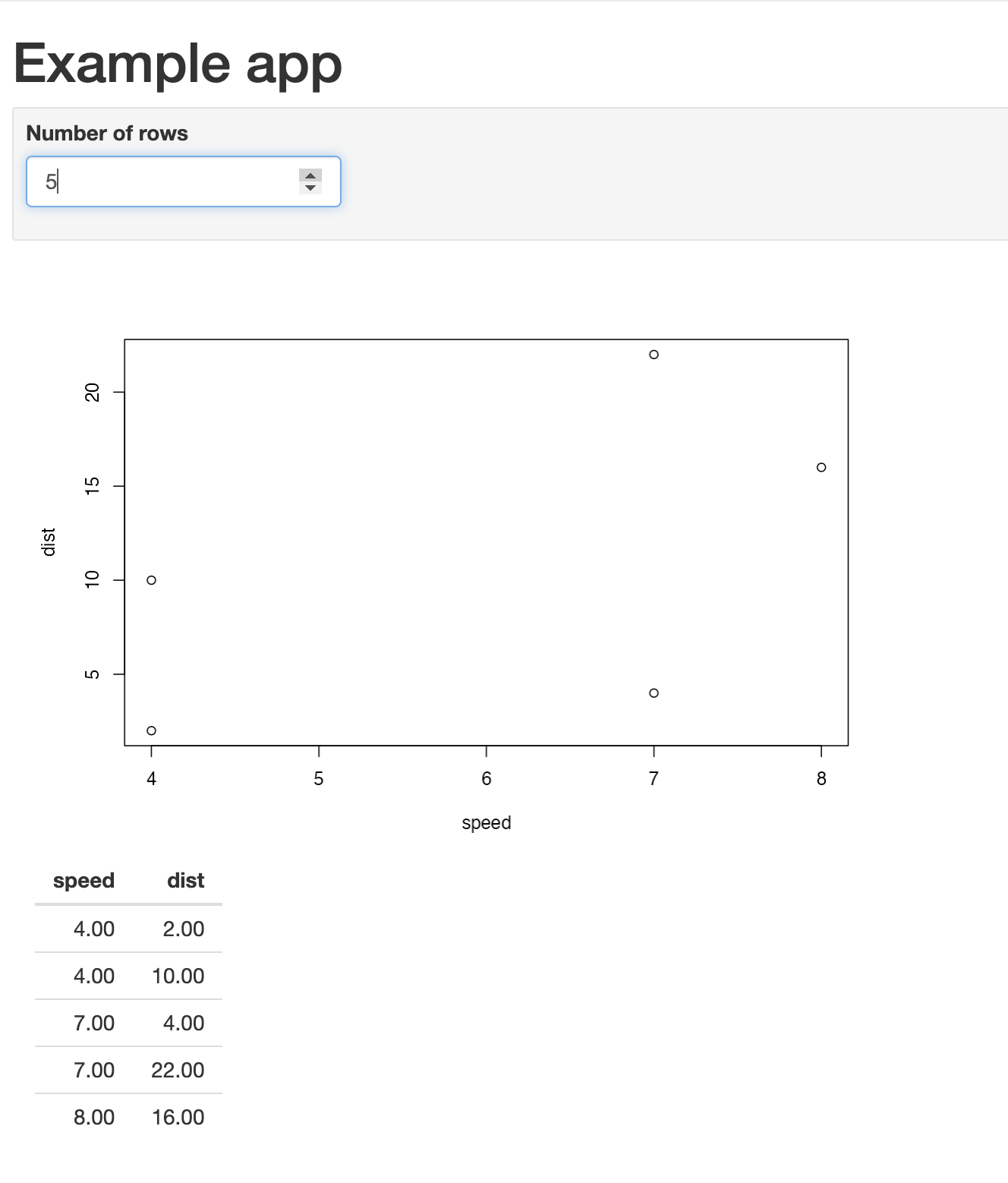

Example

ui <- fluidPage(
  h1("Example app"), # Level-1 header
    inputPanel(
      numericInput("nrows", "Number of rows", 10)
    ),
    mainPanel(
      plotOutput("plot"),
      tableOutput("table")
    )
)
server <- function(input, output, session) {
  output$plot <- renderPlot({
    plot(head(cars, input$nrows))
  })

  output$table <- renderTable({
    head(cars, input$nrows)
  })
}

Reactive expressions reduce duplication

To reduce duplication, we can create a reactive expression for the data selected

server <- function(input, output, session) {
  # Creating a reactive expression for the data
  df <- reactive({
    head(cars, input$nrows)
  })

  output$plot <- renderPlot({
    plot(df()) # Now we have to call df() like a function
  })

  output$table <- renderTable({
    df()
  })
}

Final details

  • Shiny apps need to be “connected” to RStudio or a remote RStudio server

  • You can deploy shiny apps online

    • using Posit’s cloud server (free/fee) - https://www.shinyapps.io/
    • creating a shiny server

  • Make sure that your app lives in its own folder and there are no other .R, .qmd, or .rmd files in that folder. The folder is what gets deployed.

Your turn - Modifying the geyser app

  • Histograms with one bin are not terribly informative - change the app so that the minimum number of bins a user can select is instead 5
  • Pick four colors. Modify the app to allow the user to select one of these colors for the histogram. Hint: use selectInput() in the ui and modify the hist() code in the server so that this input is used in place of darkgray
  • Add a textInput() that allows users to change the title of the histogram to whatever they specify
  • The faithful dataset contains a duration column as well. Add a second input and output to visualize the duration of eruptions.
  • Extra challenge: write code that allows the user to input minimum and maximum values for both duration and waiting time and outputs a scatterplot of that subset of data
